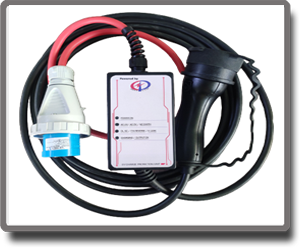

7.2kW EVSE TYPE– 2
7.2kW EVSE TYPE– 2
FEATURES
- Compact & Light Weight
- Extended cable length
- Industrial Plug at input
- Under voltage and over voltage protection
- Overload and short circuit protection
- Earth leakage/earth absence protection
- Phase—Neutral reverse protection
- Relay fault indication
- Control Pilot
- LED Indication
SPECIFICATION |
|
| Input Voltage range | 170-270V, AC 1-phase, 50Hz |
| Inrush Current handling capacity | 60A for 1s |
| Enclosure Dimension | 193mm (L) x 113mm (W) x 63mm (H) |
| Overall length | 5 mtr |
| Input side plug | 3-pin Industrial Plug, P, N & E, 32A |
| Output side | Type—2 (IEC 62196) 32A |
| Operating Temperature | 10 to 50⁰C, Storage Temperature: 20 to 70⁰C |
| Humidity | 95% RH non-condensing |
| Altitude | 2500 feet |
| Ingress Protection | IP-54 |
| Input Cable | 4 sq.mm x 3 core PVC insulated |
| Protection: |
|
| Input Under Voltage | <165V instant trip, Auto recovery >175V delay 0.6 sec |
| Input Over Voltage | >275V instant trip, Auto recovery <265V delay 0.6 sec |
| Overload | >28A/32A trips with 0.6 sec delay |
| Short Circuit | >80A, Instant trip |
| Earth Leakage (Verifies 5 times) | >26mA, Instant trip |
| Earth Not Available | Trips with 0.6 sec delay |
| Phase-Neutral Reverse | Trips with 0.6 sec delay |
| Indication: | |
| Input Under Voltage | Green LED slow flashing |
| Input Over Voltage | Green LED fast flashing |
| Overload | Red LED slow flashing |
| Short Circuit | Red LED fast flashing |
| Earth Leakage (Verifies 5 times) | Orange LED fast flashing |
| Earth Not Available | Orange LED slow flashing |
| Phase-Neutral Reverse | Orange LED slow flashing |
| Charging Indication | Blue LED slow flashing |
